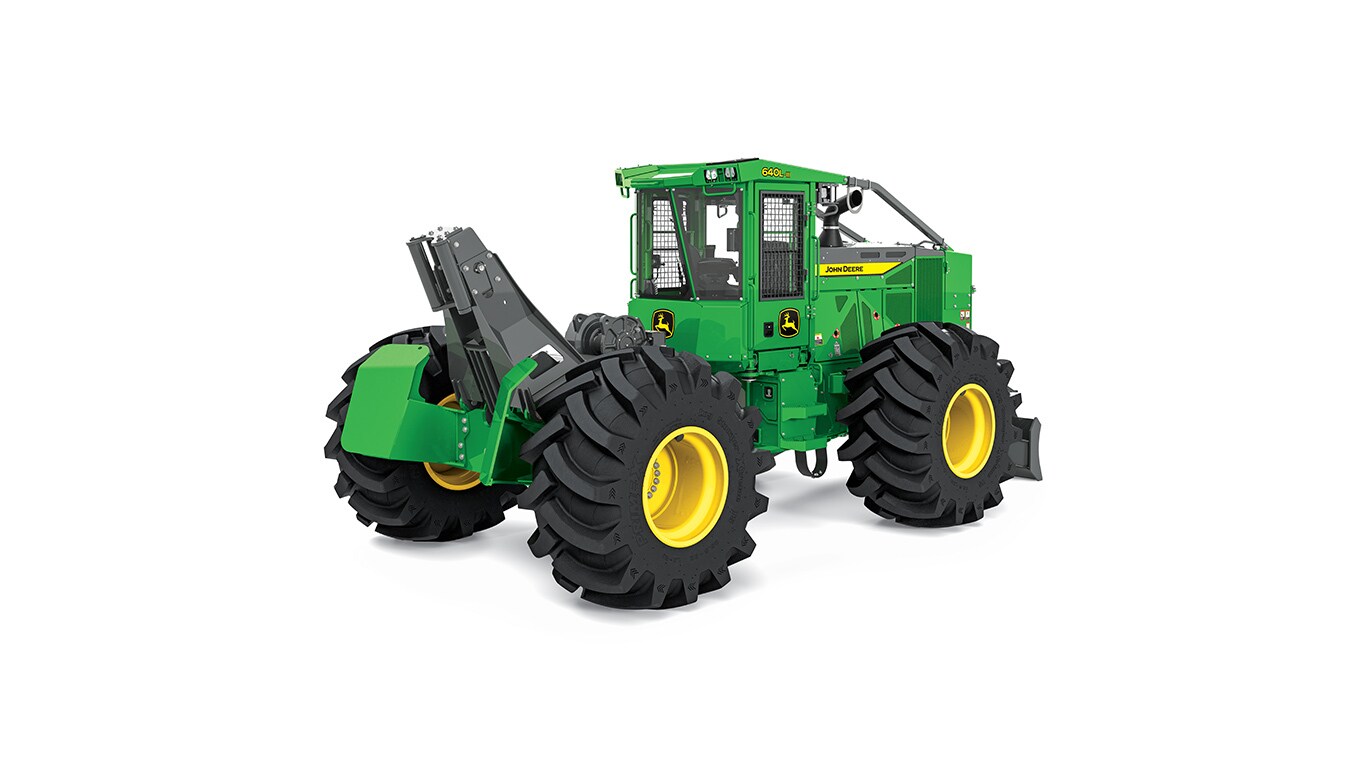

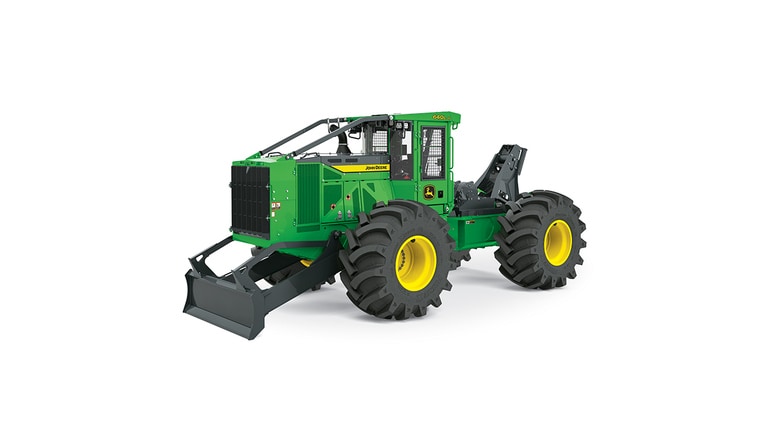

640L-IIIArrastrador con Malacate
- Potencia Bruta: 177 kW (237 CV)
- Par Motor Bruto: 1025 Nm (756 pies-lb)
- Peso operativo: 16 766 kg (36 962 lb)
Especificaciones
| Especificaciones | ||||
|---|---|---|---|---|
| John Deere 640L-III Arrastrador con Malacate |
CARDAN
| Motor - marca | John Deere | |||
|---|---|---|---|---|
| Motor - modelo | PowerTech PSS 6.8L | |||
| Desplazamiento, ltr (Inches³) | 6.8 (415) | |||
| Potencia, kW (hp) | 177 (237) | |||
| Engine Torque, Nm (lbf / ft) | 1025 (756) | |||
| Transmision | Continuous Variable Transmission | |||
| Planetaries | Inboard | |||
| Frenos de servicio - tipo | Inboard Wet discs | |||
| Freno de aparcamiento - tipo | Wet multi-disc in Transmission |
DIMENSIONES
| Longitud total, mm (inches) | 7591 (298.9) | |||
|---|---|---|---|---|
| Altura de la cabina, mm (inches) | 3365 (132.5) | |||
| Ancho total, mm (inches) | 3233 (127.3) | |||
| Distancia entre ejes, mm (inches) | 3680 (144.8) | |||
| Dozer Blade Height, mm (inches) | 687.6 (27.1) | |||
| Ground Clearance, mm (inches) | 555 (21.8) | |||
| Dozer Blade Width, mm (inches) | 2192 (86.3) | |||
| Profundidad de excavación, mm (inches) | 359 (14.1) | |||
| Steering Articulation Angle, ± Degrees | 45 |
CAPACIDADES
| Capacidad del tanque de combustible, ltr (gallons (US)) | 342.2 (90.4) | |||
|---|---|---|---|---|
| Capacidad del tanque hidráulico, ltr (gallons (US)) | 123.6 (32.6) | |||
| Salida del alternador, Amp | 150 |
FUNCIONAMIENTO
| Travel Speed, kph (mph) | 24.74 (15.37) | |||
|---|---|---|---|---|
| Oscillation Point | Front axle | |||
| Angulo de oscilación, ± Degrees | 15 | |||
| Rated Line Pull, kN (lbf) | 221 (49696) | |||
| Rated Line Speed, m/min (ft/min) | 27.4 (90) | |||
| System Voltage, V | 24 | |||
| Tipo de bombas | Var. piston |
PESOS
| Peso max., kg (lbs) | 16686 (36787) |
|---|
